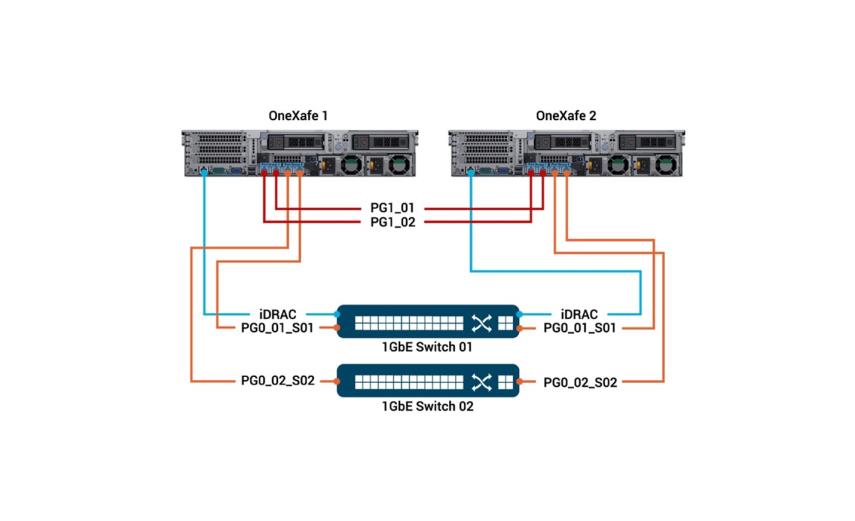

OneXafe Two Node Cluster Deployment Networking Configuration Example for 1GbE Network

• 1GbE network

• PG0 (XOR)

• direct connect for PG1 (XOR)

• port based VLANs

The example below is for the OneXafe cluster-wide settings, iDRAC, multiple VLAN IP address, configuration details as well as the configuration of PG1 through the web console.
