How do I change the OneXafe IP address with the Web Console?

To change the IP address with the web console, do the following:

With your web browser:

1. Do one of the following:
• From a PC or Mac, enter the IP address of the OneXafe.
• From a Mac, you may also enter the OneXafe host name, http://oneblox40xxx.local.

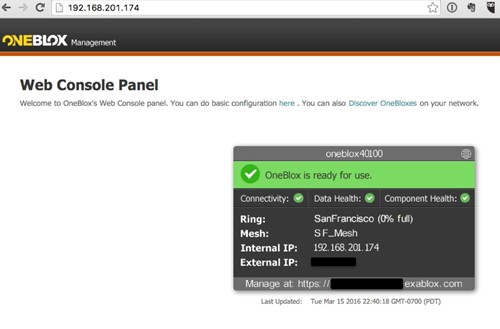

2. Click “here” in the top portion of the page where you see “You can do basic configuration network here”.

3.

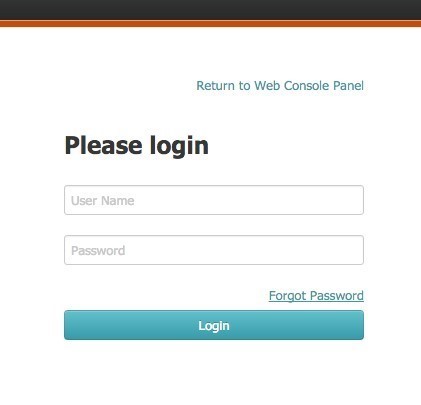

3. Enter the default user name ‘admin’ and default password ‘config’.

4.

4. Change from the default password when prompted. Select a secure password.

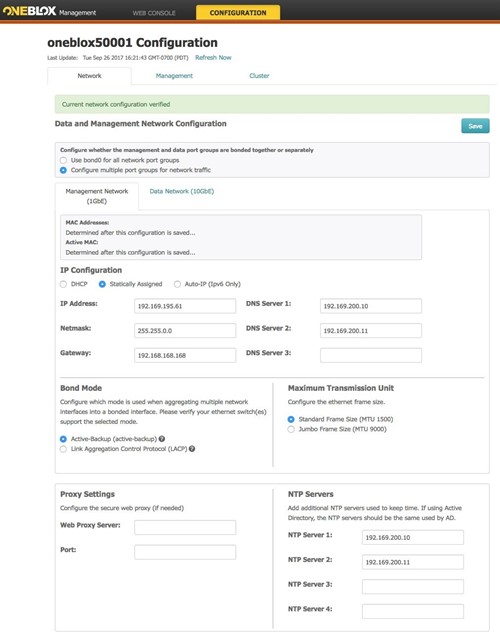

5. Enter the appropriate network configuration information and click ‘Save’.

6.

Note: If you change from a DHCP to Static IP configuration and have logged into the web console with the IP address, you will have to enter the new Static IP address to view the web console again.
