Redirection › Move IP Redirection › Add CA-IP to Existing Scenarios

Add CA-IP to Existing Scenarios

Perform this procedure only if you are using the Move IP redirection method.

To add the CA-IP to existing scenarios:

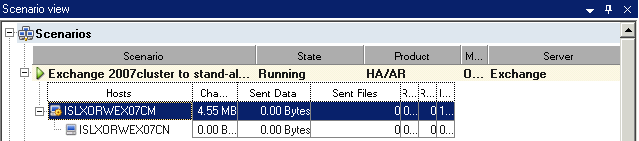

1. On the Scenario pane, select the required Master host:



2. Right-click the Master and select Rename from the pop-up menu. Then, enter the CA-IP address.
3. On the Framework pane, select the Switchover tab and then select the Replica server as the switchover host.

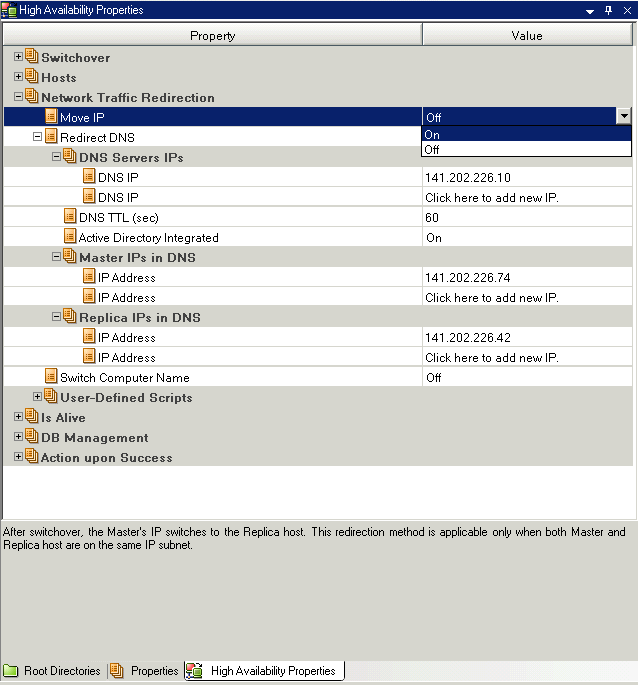

4. Set the Move IP option to On. Ensure that the IP address under Move IP, IP/Mask matches the production server IP address: this is the IP address that will switch-over. If you are moving more than one IP address you can add multiple production IP addresses by selecting Click here to add new IP/Mask:
