Perform Preflight Checks for Your Backup Jobs

The Arcserve UDP solution features a utility named Preflight Check (PFC) that enables you to run vital checks on specific nodes to detect conditions that can cause backup jobs to fail. PFC is only applicable to virtual machine nodes that are imported from vCenter/ESX or Hyper-V or Nutanix AHV. PFC does not work for VMware VM template. PFC runs automatically when you perform the following actions:

Import virtual machines from a vCenter Server/ESX Server system or Hyper-V or Nutanix AHV.
Let a backup job run.

Other References:

In addition, you can also perform a Preflight Check manually.

Follow these steps:

Click the resources tab.
From the left pane, navigate to Nodes, and click All Nodes.
The All Nodes: Node page is displayed in the center pane.
Right-click the name of a node, and click Preflight Check.
Note: You can also perform Preflight Check using one of the following options:

(Node level) Click the check boxes of the nodes on which you want to run a preflight check, and then click Actions and select Preflight Check.
(Group level) Right-click the group containing the nodes, click Preflight Check.

The following message is displayed: Starting to preflight check the virtual machine.

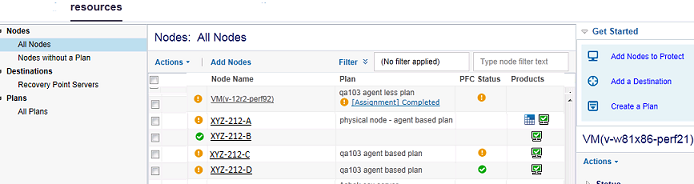

Navigate to the PFC Status column to view the status of the Preflight Check.
Note: By default, the PFC Status column is not visible on the UI. You need to manually enable the PFC Status column on the UI.
You can also view status of Preflight Check clicking View Logs from the right pane.

The following table describes the checks that PFC performs for VMware VM:

Item	Description
Changed Block Tracking (CBT)	A feature to tracks disk sectors that are on a virtual machine which has changed. This helps minimize the size of the backups. This item verifies that CBT is enabled.
VMware Tools	This item verifies that the VMware tools are installed on each virtual machine.
Disk	This item verifies the disks of the virtual machine.
Power State	This item verifies that the virtual machine is powered on.
Data Consistency	This item verifies if Application-consistent snapshot can be taken for the VM.
ESX Server	This item verifies if a server can detect the virtual machine. The option is visible only when the node is not available in ESX.

The following table describes the checks that PFC performs for Hyper-V VM:

Item	Description
Hyper-V Credentials	The product needs to deploy a backup utility and a Change Block Tracking utility to Hyper-V server through system share ADMIN$. The action helps in verifying if the product has necessary permission to the share. The Backup/restore job fails if the Hyper-V credentials are not correct or the administrator closed the ADMIN$ share.
Integration Services	This item verifies that the Hyper-V integration services are installed and enabled on each virtual machine. Without the integration services, Arcserve UDP cannot complete the following actions: Execute pre/post command and application log purge actions. Perform application-consistent backup. Integration services contain several services. The Arcserve UDP solution checks the statuses of the following two services: Hyper-V Data Exchange Service: Required for collecting the VM info, executing the pre- or post-commands and the application log purge actions. Hyper-V Volume Shadow Copy Requestor: Required for the application-consistent backup.
Power State	This item verifies that the virtual machine is powered on. A Suspended warning is shown when the VM is in the status other than powered on and power off, like the Saved status. The Arcserve UDP solution cannot run the pre/post commands and the application log purge actions when the VM is not in the Powered On status. In addition, Arcserve UDP cannot perform the application-consistent backup when VM is in the Suspended status.
Disk	This item verifies if unsupported disk is attached to the VM.
Data Consistency	This item verifies if Application consistent snapshot can be taken for the VM.

The following table describes the checks that PFC performs for Nutanix AHV VM:

Item	Description
Power State	This item verifies that the virtual machine is powered on.
Data Consistency	This item verifies if Application-consistent snapshot can be taken for the VM.
AHV Server	This item verifies if a server can detect the virtual machine. The option is visible only when the node is not available in Nutanix AHV.
