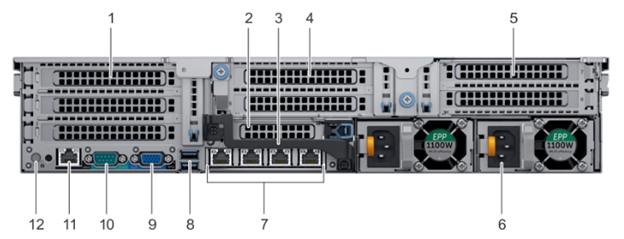

Rear Panel 9072DR-9504DR
The rear panel of the Arcserve Appliance contains the power supplies, cable connections, and ports for the appliance. The following table describes these items:
|
Number |
Control / Indicator |
Icon |
Description |
|
1 |
Full-height PCIe expansion card slot (3) |
NA |
The PCIe expansion card slot (riser 1) connects up to three full-height PCIe expansion cards to the system. For more information, see link. |
|
2 |
Half-height PCIe expansion card slot |
NA |
The PCIe expansion card slot (riser 2) connects one half-height PCIe expansion cards to the system. For more information, see link. |
|
3 |
Rear handle |
NA |
The rear handle can be removed to enable any external cabling of PCIe cards that are installed in the PCIe expansion card slot 6. |
|
4 |
Full-height PCIe expansion card slot (2) |
NA |
The PCIe expansion card slot (riser 2) connects up to two full-height PCIe expansion cards to the system. For more information, see link. |
|
5 |
Full-height PCIe expansion card slot (2) |
NA |
The PCIe expansion card slot (riser 3) connects up to two full-height PCIe expansion cards to the system. For more information, see link. |
|
6 |
Power supply unit (2) |
NA |
For more information, see link. |
|
7 |
NIC ports |
|
The NIC ports that are integrated on the network daughter card (NDC) provide network connectivity. For more information about the supported configurations, see link. |
|
8 |
USB port (2) |
|
The USB ports are 9-pin and 3.0-compliant. These ports enable you to connect USB devices to the system. |
|
9 |
VGA port |
|
Enables you to connect a display device to the system. For more information, see link. |
|
10 |
Serial port |
|
Enables you to connect a serial device to the system. For more information, see link. |
|
11 |
iDRAC9 dedicated port |
|
Enables you to remotely access iDRAC. For more information, see link. |
|
12 |
System identification button |
|
The System Identification (ID) button is available on the front and back of the systems. Press the button to identify a system in a rack by turning on the system ID button. You can also use the system ID button to reset iDRAC and to access BIOS using the step through mode. |
