Configure IP Address for Microsoft Exchange Server 2010/2013 Systems

On Exchange Server 2010/2013 systems, you should change the IP address if:

• The Exchange Server cannot be reached by resolving its name
• You want to use a specific IP address when the Exchange Server has multiple assigned IP addresses
• Exchange Servers from different domains have the same name.

To change the IP address

1. Launch the Arcserve Backup Backup Manager.
2. Right-click the Exchange Organization and select Active Directory Servers.
3. Click Add to add an AD server. Enter a Server Name, IP Address and account credentials. Click OK to return to the Exchange Organization browse dialog.
4. Right-click the Exchange Server 2010/2013 server you added and click IP Configuration.

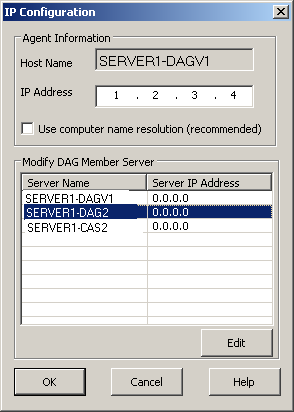

   The IP Configuration dialog opens.



5. Select the Server whose IP address you wish to change and click Edit. If the server is a standalone deployment, this dialog will not show DAG Member Servers. If it is a DAG, the dialog shows a list of all member servers.
6. Select a server to modify and click Edit. Enter a new IP address and click OK.
7. Click OK to exit IP Configuration.
