Library Request Flow for StorageTek ACSLS

StorageTek ACSLS processes the requests for library operations as follows:

The Arcserve Backup server initiates requests for library operations.
The StorageTek Library Attached software on the Arcserve Backup server transmits these requests to the ACSLS Manager on the StorageTek ACSLS server.
The ACSLS Manager receives and interprets a library request, and performs the requested operation on the StorageTek ACSLS library.
The ACSLS Manager also forms and returns a response to the Arcserve Backup server.

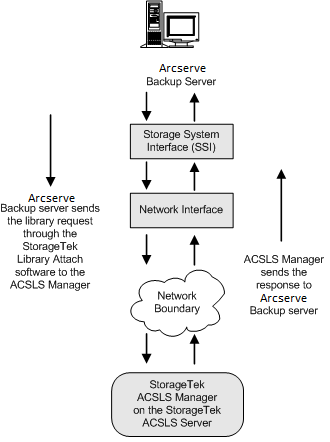

The StorageTek ACSLS library request flow is shown in the following illustration:

Illustrating StorageTek ACSLS library request flow
