Manually Configure a Branch Site

Using Global Dashboard › Manually Configure a Branch Site

Manually Configure a Branch Site

If you need to modify your branch site configuration information, you can manually change your local branch site settings or the connection settings from your branch site to the central site.

From the Start menu, select Programs/CA/ARCserve Backup/Branch Manager.
The Branch Manager dialog opens. For more information, see Understanding Branch Manager.
To change your local branch site information, click the Modify button for the branch site.

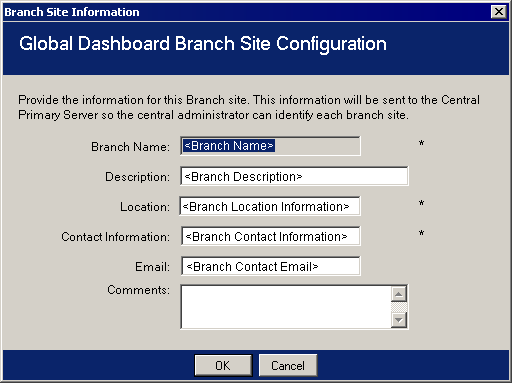

The Branch Site Information dialog opens.

This dialog displays information about your local branch site. From this dialog you can change the description, location, and contact information (including email address) for your branch site, and add any useful comments.
After you have updated your branch site information, click OK to save your settings.
The modified information will immediately be sent to the central site and displayed on the Central Manager.
To change your connection information to the central site, click the Modify button for the Connection to Central Primary Server.

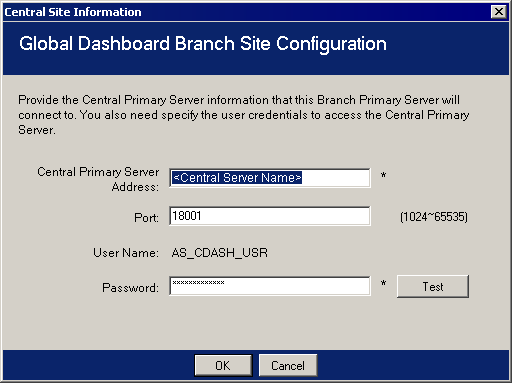

The Central Site Information dialog opens.

This dialog displays connection information to the central site. For a branch site to properly communicate to the central site, these parameters must be the same as specified for the central site configuration.

If any of these connection parameters do not match the central site configuration parameters, you can use this dialog to change the name (or IP address) of the Central Primary Server, the Port number to access the Central Primary Server, or the authentication Password for the user.

You can click the Test button to verify the connection status to the central site.
After you have updated your central site connection information, click OK.
The modified information will immediately be used by the Branch Synchronization Service to upload your branch site data to the central site.
