Recover Source Servers Using CA ARCserve D2D Backup Data

The application lets you recover source servers from data that was backed up using CA ARCserve D2D.

Note: The application uses the bare metal recovery process to recover source servers from CA ARCserve D2D backup data. For more information, see Recovering Source Servers Using Bare Metal Recovery.

To recover source servers using CA ARCserve D2D backup data

1. Insert the saved Boot Kit image media and boot the computer.
   • If you are using a saved Windows PE Image, insert the Boot Kit image CD/DVD.
   • If you are using a USB stick, insert the Windows Server Installation CD/DVD and connect the USB stick with the saved Boot Kit image.

   The BIOS Setup Utility screen is displayed.

2. From the BIOS Setup Utility screen, select the CD-ROM Drive option to launch the boot process.

   Note: If you are using Windows PE image to perform BMR, select an architecture (x86/x64) and press Enter to continue.



3. The CA ARCserve D2D language select screen is displayed. Select a language and press "Next" to continue.

   Note: If you perform BMR with a BMR USB stick and a Windows 7/Windows Vista/Windows 2008/Windows 2008 R2 installation media (CD/DVD) not supported with a Multilingual User Interface (MUI), the language select screen is suppressed.



   The Bare Metal Recovery process is initiated and the initial BMR wizard screen is displayed.

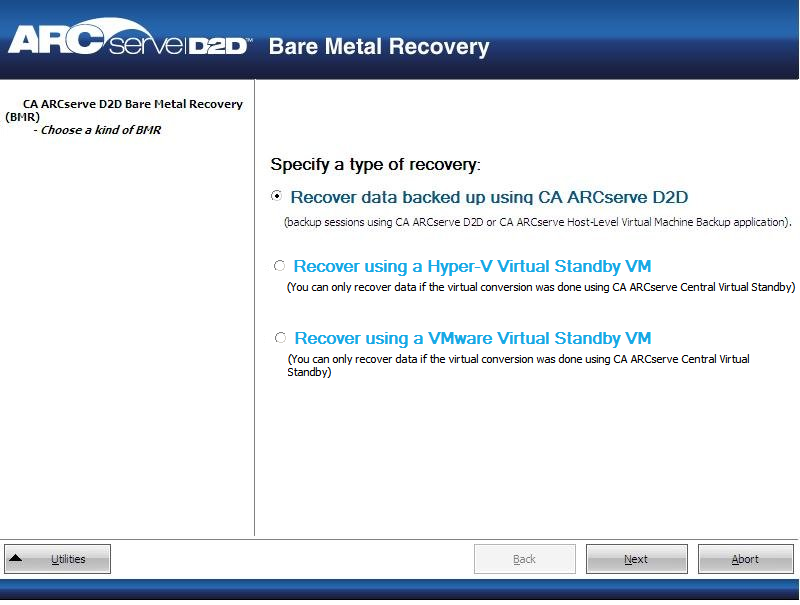

4. Click Recover data backed up using CA ARCserve D2D and then click Next.

   The Select a Recovery Point wizard screen is displayed.

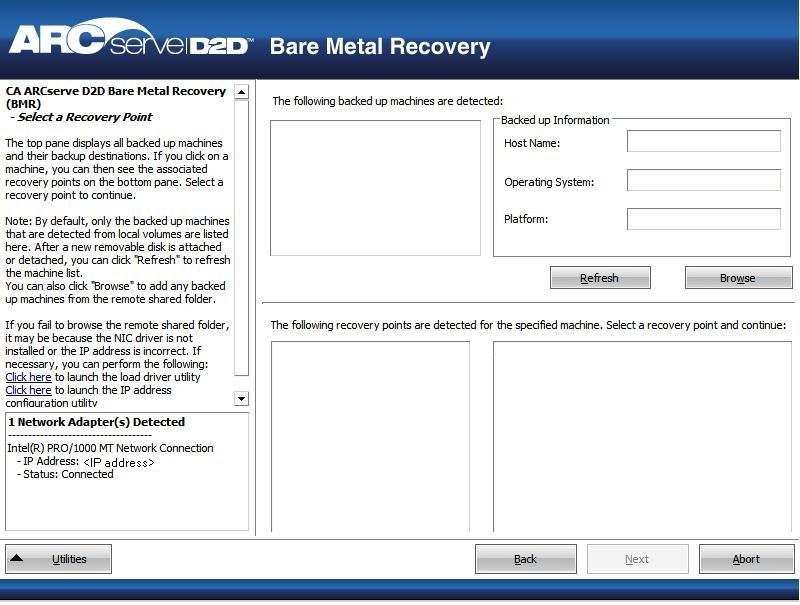

5. From the Select a Recovery Point wizard screen, select the machine (or volume) which contains recovery points for your backup image.

   CA ARCserve D2D lets you recover from any local drive or from a network share.

   • If you are recovering from a local backup, the BMR wizard automatically detects and displays all volumes that contain recovery points.
   • If you are recovering from a remote share, you must browse to the remote location where the recovery points are stored. If there are multiple machines that contain recovery points, all machines are displayed.

     You may also need access information (User Name and Password) for the remote machine.

     Note: The network must be up and running to browse to remote recovery points. If necessary you can check/refresh your network configuration information or load any missing drivers from the Utilities menu.

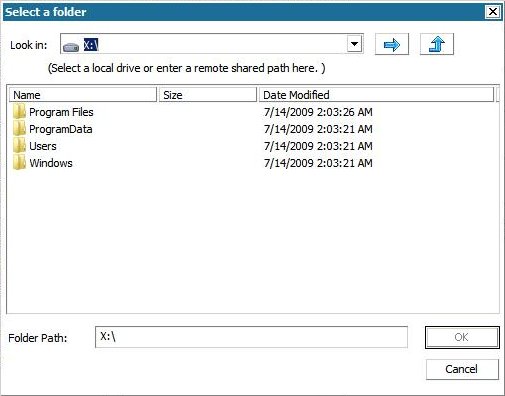

6. If the BMR module cannot detect any local destination volume, the "Select a Folder" dialog is automatically displayed and you must provide the remote share where the backups are residing.



7. Select the folder where the recovery points for your backup are stored and click OK. (You can click the arrow icon to validate the connection to the selected location).

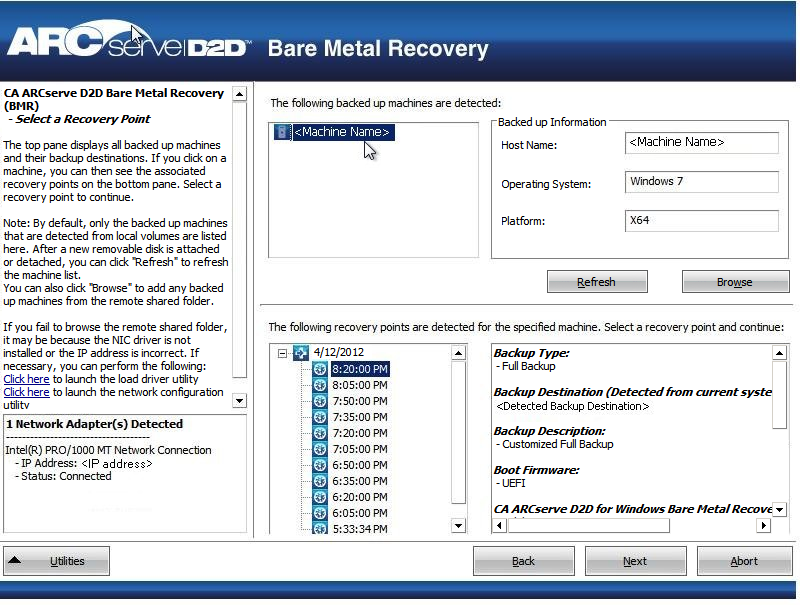

   The BMR wizard screen now displays the machine name (in the upper left pane), with the related backup information (in the upper right pane) and all the corresponding recovery points (in the lower left pane).



8. Select which recovery point to restore.

   The related information for the selected recovery point is displayed (in the lower right pane). This display includes such information as the type of backup that was performed (and saved), the backup destination, and the volumes that were backed up.

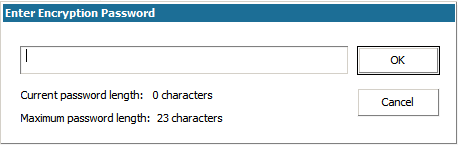

   If the recovery point contains encrypted sessions (the recovery point clock icon includes a lock), a password required screen appears. Enter the session password and click OK.



   Note: If your machine is a Domain Controller, CA ARCserve D2D supports a non-authoritative restore of the active directory (AD) database file during BMR. (Restore of MSCS clusters are not supported).

9. Verify this is the recovery point that you want to restore and click Next.

   A BMR wizard screen is displayed with the available recovery mode options.



10. Select the recovery mode.

    The available options are Advanced Mode and Express Mode.

    • Select Advanced Mode if you want to customize the recovery process.
    • Select Express Mode if you want minimal interaction during the recovery process.

    Default: Express Mode.

    Note: The remainder of this procedure is applicable only if you selected the Advanced Mode and the procedure provides information to guide you through the BMR process.

11. Click Next.

    The BMR utility starts locating the machine that is going to be recovered and displays the corresponding disk partition information.

    The upper pane shows the disk configuration that you have on the current (target) machine and the lower pane shows the disk partition information that you had on the original (source) machine.

    Important! A red X icon displaying for a source volume in the lower pane indicates that this volume contains system information and has not been assigned (mapped) to the target volume. This system information volume from the source disk must be assigned to the target disk and restored during BMR or the reboot fails.

    Note: If you perform BMR and you restore the system volume to a disk which is not configured as the boot disk, it will fail to boot the machine after BMR is completed. Ensure that you are restoring the system volume to a properly configured boot disk.

    Note: When restoring to another disk/volume, the capacity of new disk/volume must be the same size or larger than original disk/volume. In addition, disk resizing is for basic disks only, and not for dynamic disks.



12. If the current disk information you are seeing does not appear correct, you can access the Utilities menu and check for missing drivers.
13. If necessary, on the target volume pane you can click the Operations drop-down menu to display the available options.

    From this menu, you can reset any existing partitions or you can create new partitions to correspond to the disk partitions on the source volume. (Reset means to reload the source and target disk layout information from the configure file and current OS, and discard any user changed disk layout information).

    Note: When mapping to another disk, the capacity of each mapped target volume must be the same size or larger than the corresponding source volume.



14. Click on each target volume and from the pop-up menu, select the Map Volume From option to assign a source volume to this target volume.

    The Select a Basic Source Volume dialog opens.



15. From Select a Basic Source Volume dialog, click the drop-down menu and select the available source volume to assign to the selected target volume. Click OK.
    • On the target volume, a checkmark icon is displayed, indicating that this target volume has been mapped to.
    • On the source volume, the red X icon changes to a green icon, indicating that this source volume has been assigned to a target volume.
16. When you are sure all volumes that you want to restore and all volumes containing system information are assigned to a target volume, click Next.

    The Submit Disk Changes screen opens, displaying a summary of the selected operations. For each new volume being created, the corresponding information is displayed.



17. When you have verified the summary information is correct, click Submit. (If the information is not correct, click Cancel).

    Note: All operations to the hard drive do not take effect until you submit it.

    On the target machine, the new volumes are created and mapped to the corresponding source machine.

18. When the changes are completed, click OK.

    The Summary of Restore Settings screen opens, displaying a summary of the volumes that are going to be restored.

    Note: On the bottom of restore summary window, the drive letters listed in "Destination Volume" column are automatically generated from the Windows Preinstallation Environment (WinPE). They can be different from the drive letters listed in "Source Volume" column. However, the data is still restored to proper volume even if drive letters are different.



19. After you have verified that the summary information is correct, click OK.

    The restore process starts. The BMR wizard screen displays the restore status for each volume.

    • Depending upon the size of the volume being restored, this operation can take some time.
    • During this process you are restoring, block-by-block whatever you had backed up for that recovery point and creating a replica of the source machine on the target machine.
    • By default, the option to reboot your system automatically after recovery is selected. If necessary, you can clear this option and you can reboot manually at a later time.
    • If necessary, you can cancel or abort the operation at any time.



20. From the Utilities menu, you can access the BMR Activity Log and you can use the Save option to save the Activity Log.

    By default, the Activity Log is saved to the following location:

    X:\windows\system32\dr\log.

    Note: To avoid getting a Windows-generated error, do not save the Activity Log on your desktop or create a folder on your desktop using the "Save As" option from the BMR Activity Log window.

21. If you are restoring to dissimilar hardware (the SCSI/FC adapter which used to connect hard drives could have been changed) and no compatible driver is detected in your original system, a "driver injection" page is displayed to allow you to provide drivers for these devices.

    You can browse and select drivers to inject to the recovered system so that even if you are recovering to a machine with dissimilar hardware, you can still bring back the machine after BMR.

22. When the BMR process is completed, a confirmation notification is displayed.

Notes: After completion of BMR:

• The first backup that is performed is a Verify Backup.
• Verify that the BIOS is configured to boot from the disk on which the boot volume was restored to.
• When the machine has been rebooted, you may need to configure the network adapters manually if you restored to dissimilar hardware.
• For dynamic disks, if the status of the disk is offline, you can manually change it to online from the disk management UI (accessed by running the Diskmgmt.msc control utility).
• For dynamic disks, if the dynamic volumes are in a failed redundancy status, you can manually resynchronize the volumes from the disk management UI (accessed by running the Diskmgmt.msc control utility).
