Create a Replication Plan to Send Data to the Destination Console

Source Administrator

To replicate your backup data to the destination recovery point server that is managed from a different console, create a replication plan. This replication plan includes a backup task and a remotely managed replication task. In the replication task, specify the remote server and plan details and connect to the remote server. If the connection is successful, you can select the plan that the destination administrator created for you.

Follow these steps:

1. From the Console, click the resources tab.
2. From the left pane, navigate to Plans and click All Plans.
3. Click Add a Plan.

   The Add a Plan page opens.

4. Enter a plan name and select one of the following backup tasks and create the task:
   • Backup: Agent-Based Windows
   • Backup: Host-Based Agentless

   Note: For more information about creating a backup task, see the following topics:

   • How to Create a Windows Backup Plan
   • How to Create a Host-Based Virtual Machine Backup Plan
5. On the left pane, click Add a Task.

   A new task is added to the left pane.

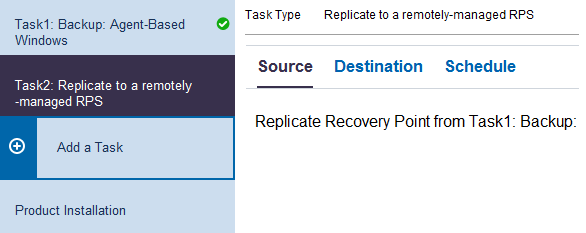

6. From the Task Type drop-down list, select Replicate to a remotely-managed RPS.

   The Replicate task is added and the Source page opens. For the Source tab, the destination of the backup task (for example, Backup: Agent-Based Windows) is the source for the Replicate to a remotely-managed RPS task.

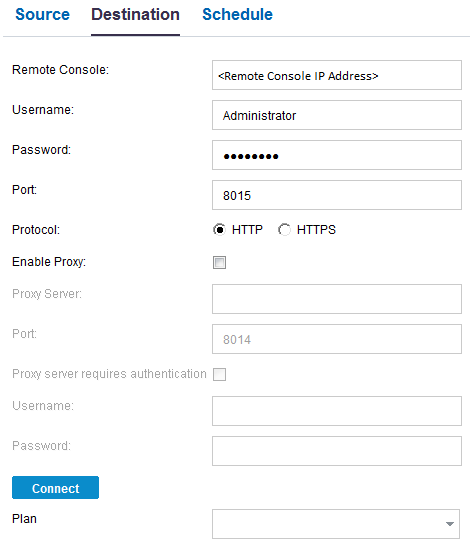

7. Click the Destination tab and enter the following details.



   Remote Console

   Specify the IP address of the destination Console. The destination administrator provides you the destination Console address.

   Username

   Specify the username created by the destination administrator. The destination administrator provides you the username.

   Password

   Specify the password created by the destination administrator. The destination administrator provides you the password.

   Port

   Specify the port number of the destination Console. The destination administrator provides you the port number of the destination Console.

   Protocol

   Specify the protocol used by the destination administrator to connect to the destination Console.

   Enable Proxy

   Select the checkbox to enable the proxy server selection.

   Proxy Server

   Specify the address of the proxy server.

   Port

   Specify the port number of the proxy server.

   Proxy server requires authentication

   Select the checkbox to enable the authentication fields for the proxy server.

   Username

   Specify the username to connect to the proxy server.

   Password

   Specify the password to authenticate the proxy server connection.

   Connect

   Verifies the connection between the source Console and the destination Console. If the connection is successful, then you can see the plan name in the Plan field. This plan name is assigned to this Console by the destination administrator.

   Plan

   Specify the plan that the destination administrator has created for you. If there are multiple plans in the list, then contact the destination administrator to know the correct plan.

   Start retry

   Reruns the replication job after the specified time if there is a failure. Enter a value from 1 to 60 and the time is defined in minutes.

   Retry

   Specify the number of retries that you want to perform if there is a job failure. After the number of retries is over, the replication job will run only at the next scheduled time. Enter a value from 1 to 99.

8. Click the Schedule tab and provide the replication job schedule and replication throttle schedule.

   Replication Job Schedule

   Specify the date and time to start the replication jobs. You can edit or delete a replication job schedule.

   Replication Throttle Schedule

   Specify the maximum speed (Mbps) at which the replication is done. You can throttle the replication speed to reduce the CPU or network usage. For a replication job, the jobs tab displays the average Read and Write speed of the job in progress and the configured throttle speed limit.

   You can edit or delete a replication throttle schedule.

9. Click Save.

   The plan is saved and runs per the schedule.

You have successfully created and automatically deployed a replication plan. When the plan runs, the data gets replicated from the source location to the destination data location over a network.

Note: After the replication process is complete, the replicated node details are automatically added to the destination Console.

You have successfully replicated data between two data stores managed from different UDP Consoles.
