dashboard

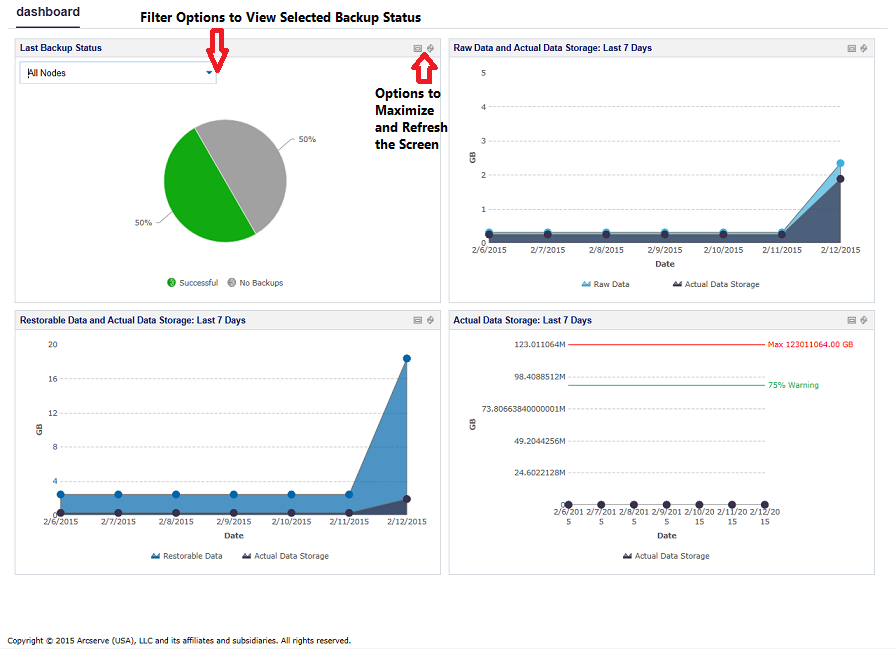

The dashboard tab lets you view graphical representation of the latest backup status and data storage of the last seven days. Using the dashboard tab, you can perform the following action:

• Customize the position of the four graphs. Place the mouse over the name of any of the four options, and you can drag one graph to other location on the screen.
• Click one of the two options available for every screen if you want to refresh or maximize a screen. Click Refresh icons in any of the four screens to get the latest data size. Click Maximize icon of a screen to view only that screen in the dashboard.
• View the last backup status of nodes or plans according to the filters you select in the chart in the Last Backup Status.



You can view the graphs for the following items on the dashboard tab:

Last Backup Status

Last Backup Status refers to the latest backup status and provides you multiple filters to view the status. Based on your selection from the filter option, you can view the last backup status. For example, select All Nodes to see the last backup status of all nodes or select any plan to see the last backup status of the nodes protected by this plan. When you select All Nodes, you can see the status as Successful, Failed, No Backups, Canceled, and Missed. Successful indicates that the nodes are successfully backed up. Failed indicates that the last backup is not successful. No Backups indicate that the nodes do not have any plan associated with it. Canceled indicates that the last backup was stopped. Missed indicates that the last backup was not performed as scheduled.

When you click each slice (the status) from the pie chart, the resources page opens and the associated nodes are displayed. For example, if you click No Backups from the pie chart, the resources page opens. The resources page displays the nodes that do not have any plan. Also, the No Backups filter is preselected on the resources page.

Raw Data and Actual Data Storage

The graph refers to the raw data and actual data storage. You can click Raw Data or Actual Data Storage to hide or view information about any of the two options. You can hover to the point to see the detail data size information using the tooltip.

Raw data

Refers to the original data that Arcserve UDP gets from source.

Actual Data

Refers to the data size that is saved on the disk after being compressed or deduplicated by Arcserve UDP.

Restorable Data and Actual Data Storage

The graph refers to the data that you can restore and the actual data storage. You can click Restorable Data or Actual Data Storage to hide or view information about any of the two options. You can hover to the point to see the detail data size information using the tooltip.

Restorable Data

Refers to the actual data that can be restored.

Actual Data Storage

The graph displays information about the actual data storage. You can click Actual Data Storage to hide or view information about the actual data storage. You can hover to the point to see the detail data size information using the tooltip.
