(Optional) Deploy the Recovery Point Server

Using Arcserve UDP, you can discover and deploy the latest version of the RPS component to recovery point servers. After you deploy the RPS component, the node is ready to store the backup sessions and serve as a recovery point server.

Note: The RPS components are installed with the Arcserve UDP installation.

Follow these steps:

1. Click the resources tab.
2. From the left pane navigate to Destinations, and click Recovery Point Servers.

   The Destination: Recovery Point Server page is displayed.

3. Perform one of the following actions:
   • Right-click a recovery point server.
   • Select a recovery point server, and from the center pane click the Actions drop-down list.
   • Select a recovery point server, and from the right pane click the Actions drop-down list.

   A list of options is displayed.

4. Click Install/Upgrade Recovery Point Server.

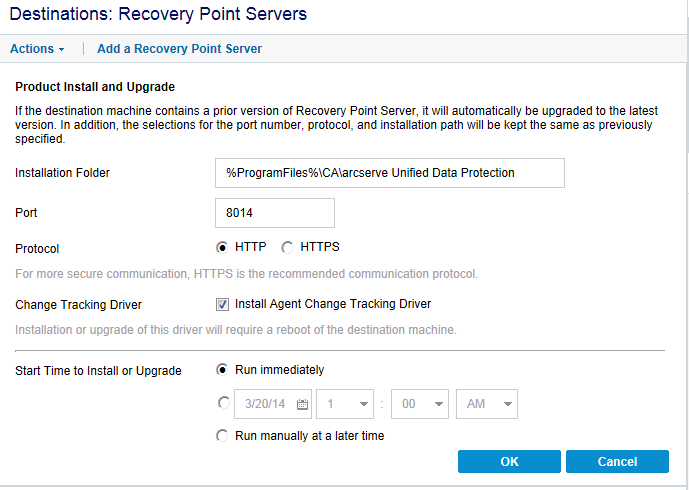

   The Product Install and Upgrade page is displayed.



5. Modify the deployment settings, and click OK to deploy the recovery point server on the selected node.

   The recovery point server deployment starts. You can view the deployment progress on the right pane.
