How SAPDBA Backs Up Data

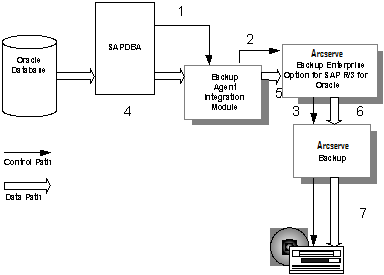

The option performs backups with SAPDBA using the following steps:

1. A user issues a backup command from the SAPDBA user interface.

   SAPDBA directs the request to the backup option integration module.

2. The backup option integration module receives the backup request and passes it to the option.
3. The option passes the backup request to Arcserve Backup.
4. SAPDBA begins copying backup data from the database and passes it to the backup option integration module.
5. The backup option integration module passes the backup data to the option.
6. The option passes the backup data to Arcserve Backup.
7. Arcserve Backup saves the data to a storage medium.
