View Status Information About Virtual Standby Jobs from the Nodes

CA ARCserve Central Virtual Standby converts CA ARCserve D2D recovery points to recovery point snapshots. You can view status information about in-progress conversion jobs.

Optionally, you can access the status information from the Virtual Standby server or directly from the node. For information about how to access status information from the Virtual Standby server, see View Status Information About Virtual Standby Jobs from the Virtual Standby Server.

Follow these steps:

1. Open the application and click Nodes in the Navigation bar.

   The Node screen displays.

2. From the Groups list, click All Nodes, or click the group that contains the CA ARCserve D2D node that you want to log in to.

   The nodes list displays all nodes associated with the specified group.

3. Browse to and click the node that you want to log in to and then click Login D2D from the pop-up menu.

   You are logged in to the CA ARCserve D2D node.

   Note: If a new browser window does not open, verify that the pop-up options for your browser allow all pop-ups or pop-ups only for this website.

4. Click the Virtual Standby tab.

   The Virtual Standby Summary screen opens.

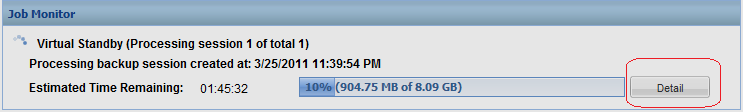

   If there is an in-progress Virtual Standby job, a status dialog appears in the Job Monitor field as illustrated by the following:



5. Click Detail to open the Virtual Standby Status Monitor.

   Note: For information about the fields that appear on the Virtual Standby Status Monitor, see Virtual Standby Status Monitor.

6. Click Close to close the Virtual Standby Status Monitor dialog.
