Find the IP address of Integrated Dell Remote Access Controller for 9000 Series (iDRAC)

Arcserve Appliance 9012-9504DR series models are configured to use DHCP for iDRAC by default. To access iDRAC, ensure that you connect the ethernet cable to the iDRAC9 dedicated network port. For information about real panel and iDRAC9 dedicated network port of Arcserve Appliance 9012-9504DR series models, see Real panel of 9012-9048, Real Panel 9072DR-9504DR.

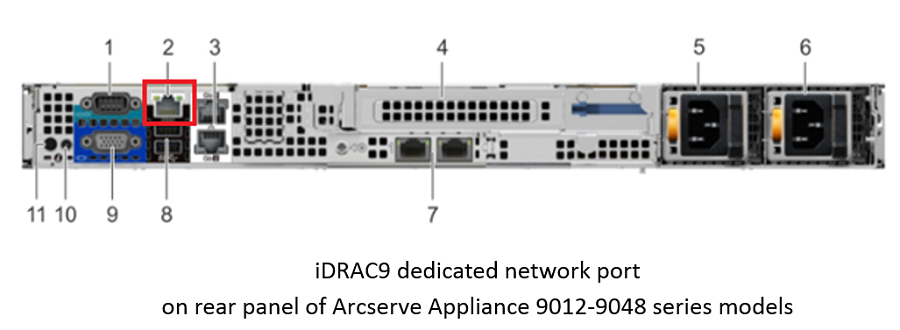

View Rear Panel of 9012-9048 for iDRAC9

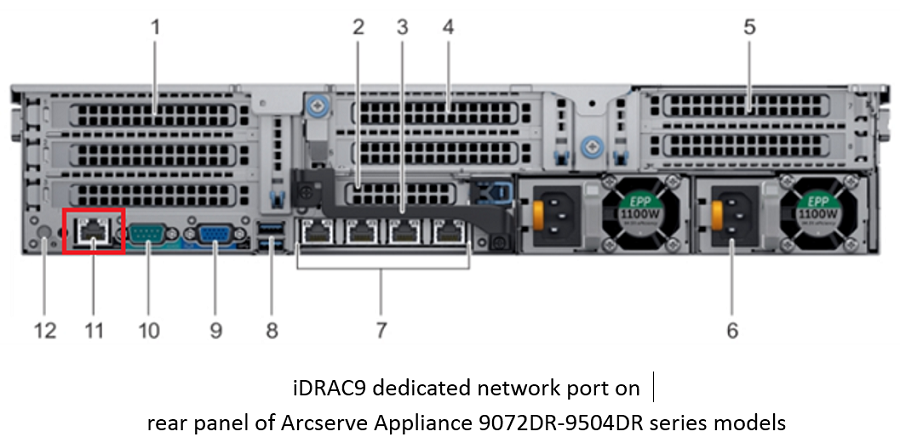

View Rear Panel of 9072DR-9504DR for iDRAC9

You can find the IP address of iDRAC from appliance.

Follow these steps:

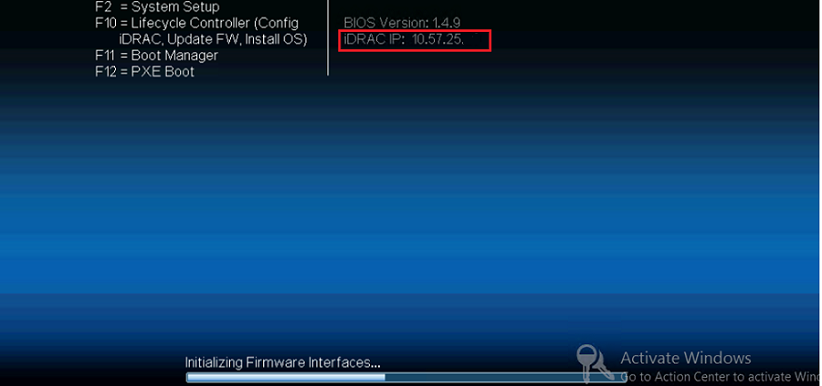

1. Make a note of iDRAC IP while starting Arcserve Appliance.



2. Launch a browser and navigate to https://<iDRAC-IP-address>.
3.

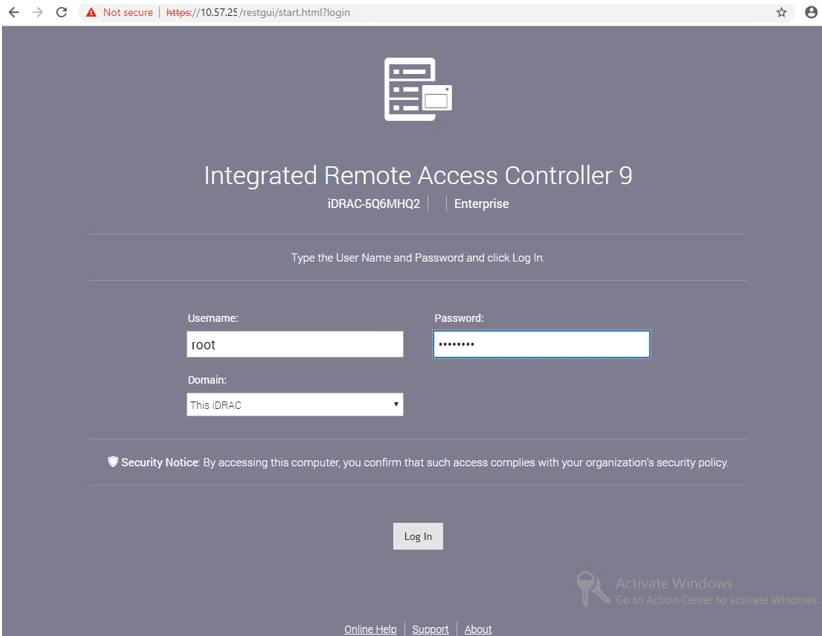

4. iDRAC login page is displayed.
