During the Recover VM configuration process, you are required to select the option of where you want to restore the virtual machine to. The available selections are Restore to the Original Location and Restore to an Alternative Location.
This procedure explains how to restore a virtual machine to the original location.
Follow these steps:
The appropriate dialog for VMware or Hyper-V is displayed.

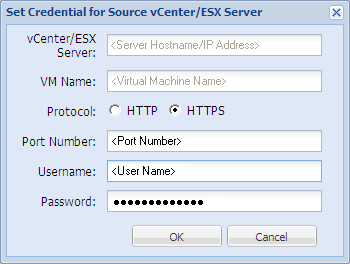

Displays the host name or IP address for the destination vCenter Server or ESX Server system.
Note: You cannot edit this field. You can only view the details.
Displays the virtual machine name that you are restoring.
Note: You cannot edit this field. You can only view the details.
Specifies the protocol that you want to use for communication with the destination server. The available selections are HTTP and HTTPS.
Specifies the port that you want to use for data transfer between the source server and the destination.
Default: 443.
Specifies the user name that has access rights to log in to the vCenter/ESX server where you plan to restore the virtual machine.
Specifies the corresponding password for the User Name.

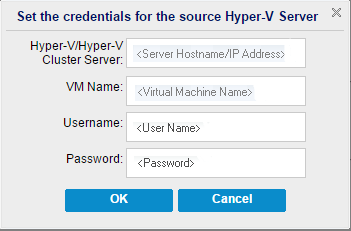

Displays the host name or IP address for the destination Hyper-V Server or Hyper-V cluster server system.
Note: You cannot edit this field. You can only view the details.
Displays the virtual machine name that you are restoring.
Note: You cannot edit this field. You can only view the details.
Specifies the user name that has access rights to log in to the Hyper-V server where you plan to restore the virtual machine. For Hyper-V cluster VM, specify the domain account which has administrative privilege of the cluster.
Specifies the corresponding password for the User Name.
The Restore Summary dialog opens.
The restore options for original location are defined.
