Map the Plan to the User Account

Destination Administrator

You have already created a user account and a plan for a source Console. To identify and manage replicated data, assign the plan to the user account.

Note: You can assign more than one plan to a user account but two different accounts cannot share a plan. However, we recommend assigning a single plan to a user account so that you can easily identify and manage the replicated data.

Follow these steps:

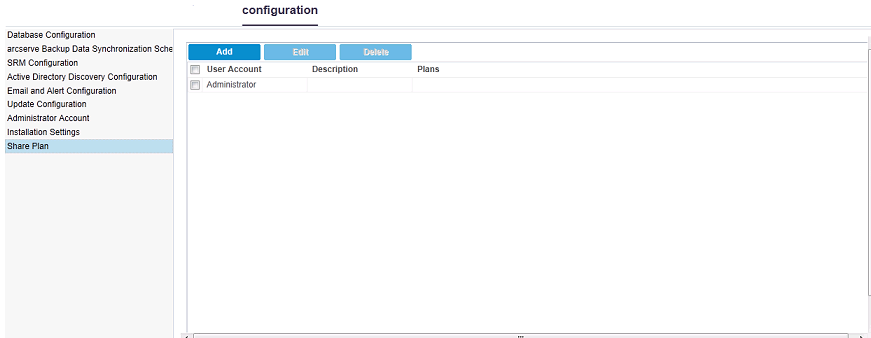

1. From the Console, click the configuration tab.
2. From the left pane, click Share Plan.



3. From the center pane, click Add.

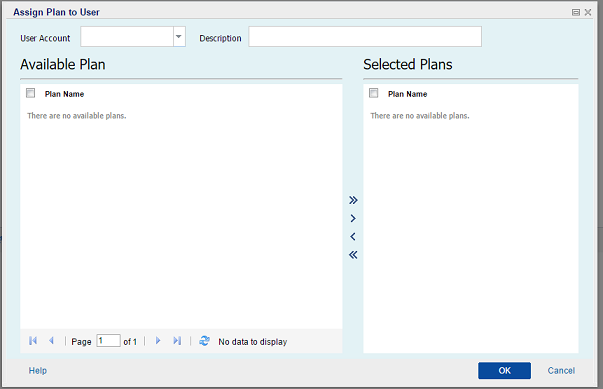

   The Assign Plan to User dialog opens.



4. Select the User Account.
5. Select a plan from the Available Plan column.

   Note: If a plan is already added to a user name, that plan is not displayed in the Available Plan column.

6. Click Add all plans or Add selected plans to add the plans in the Selected Plans column.
7. Click OK.

   The Assign Plan to User dialog closes. The user name and the associated plans are displayed on the Share Plan page.

The user account is mapped to the plan created for the source Console.

You can use Edit to modify the user configuration or Delete to remove the user account from the list.
