Configure SRM

The SRM Configuration page lets you configure an SRM schedule for nodes that defines when and how often to collect SRM data. SRM (Storage Resource Management) is a functionality that collects information about the following data:

• Hardware, software, and application data for Microsoft SQL Server and Microsoft Exchange Server implementations.
• Performance Key Indicators (PKI) data from nodes.

Follow these steps:

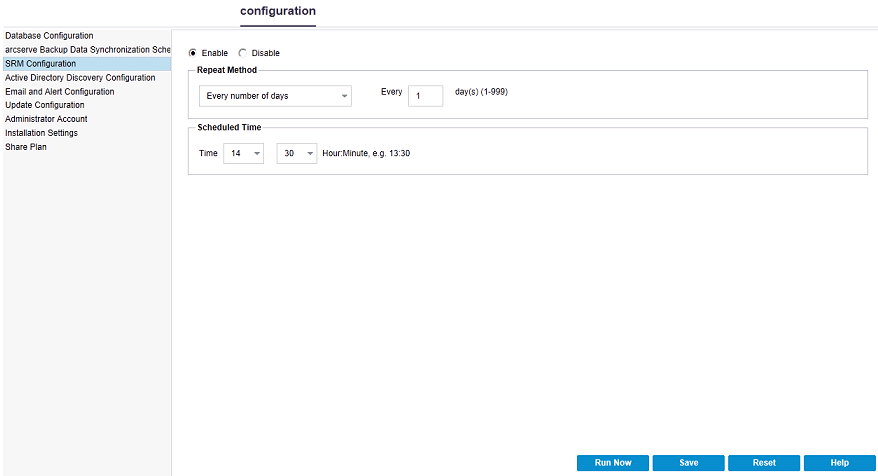

1. From the Console, click the configuration tab.
2. From the left pane, click SRM Configuration.
3. From the right pane, click Enable.

   By default, SRM Configuration is enabled.



   Note: Clicking Disable stops scheduling.

4. Specify the following parameters to schedule SRM:
   • Repeat Method
   • Scheduled Time
5. Click Save.

   The schedule for SRM is applied.

   Note: Do not click Save, if you want to collect the SRM data immediately.

6. (Optional) To run the process immediately, click Run Now.

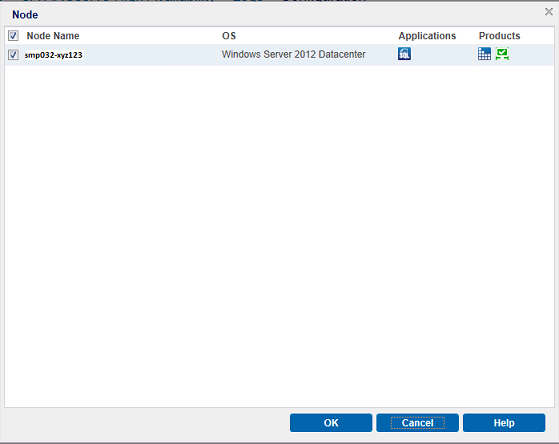

   The Node dialog is displayed with the list of nodes available for synchronization.



   Select the nodes that you want to run for synchronization, and click OK.
