Exploring and Configuring Arcserve UDP › How to Configure Arcserve UDP › Update Configuration

Update Configuration

The Update Configuration page lets you set Download Server and Update schedule for configuring updates. You can provide details about Arcserve Server proxy settings or Staging server for Download Server.

Follow these steps:

1. From the Console, click the configuration tab.

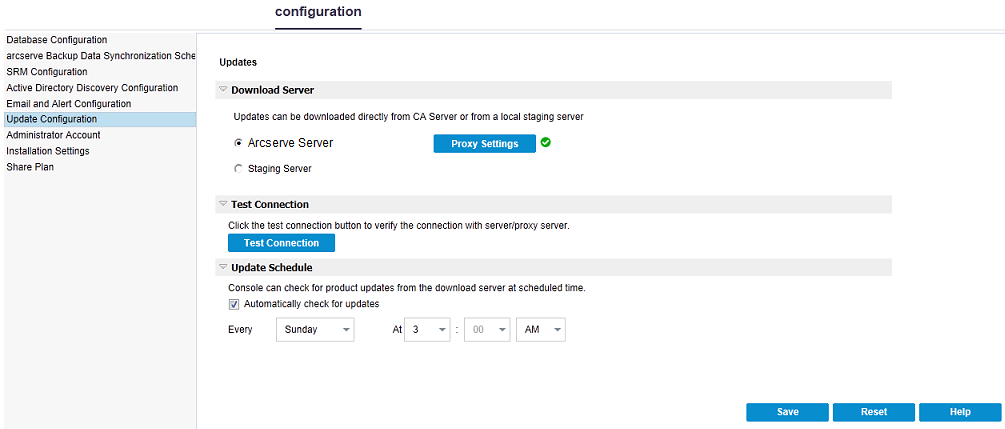

2. From the left pane, click Update Configuration.



Provide the details on type of Update Server and Update Schedule. Update Server is either Arcserve Server or Staging Server.

Follow these steps:

1. For Download Server, select one of the following options:

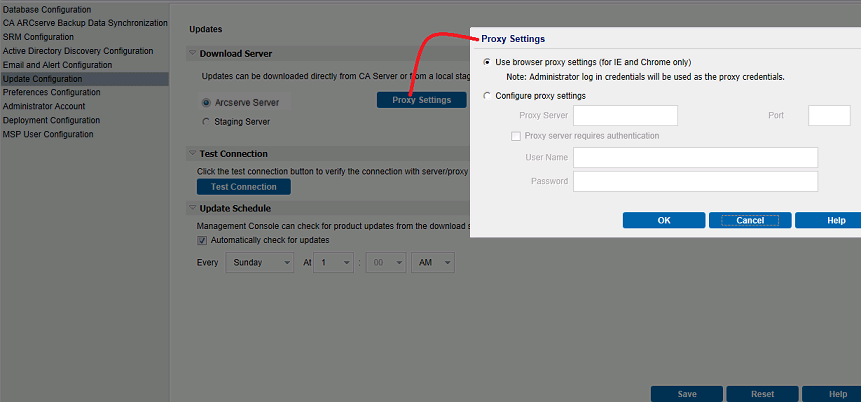

   • For Arcserve Server, click Proxy Settings to complete Proxy Setup.

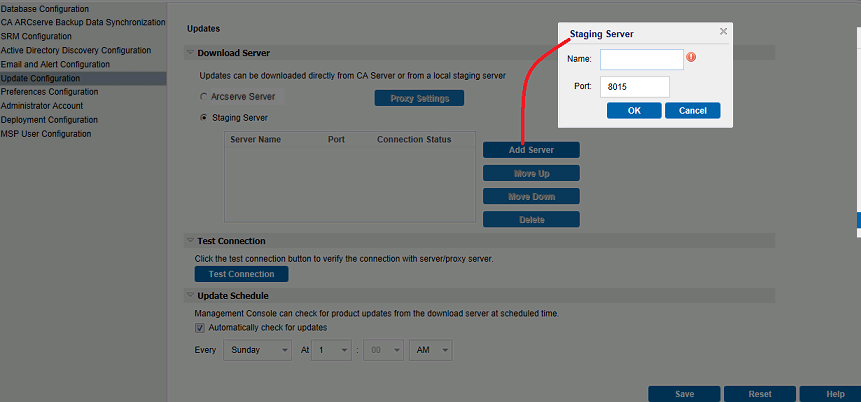

   • For Staging Server, click Add Server to provide staging server details.



   You can add multiple staging servers.

2. Click Test Connection to verify the Download server details.
3. Enter details for Update Schedule.
4. Select Automatically check for updates.
5. Click Save to complete the update.
