Exploring and Configuring Arcserve UDP › How to Configure Arcserve UDP › Configure Email and Alert

Configure Email and Alert

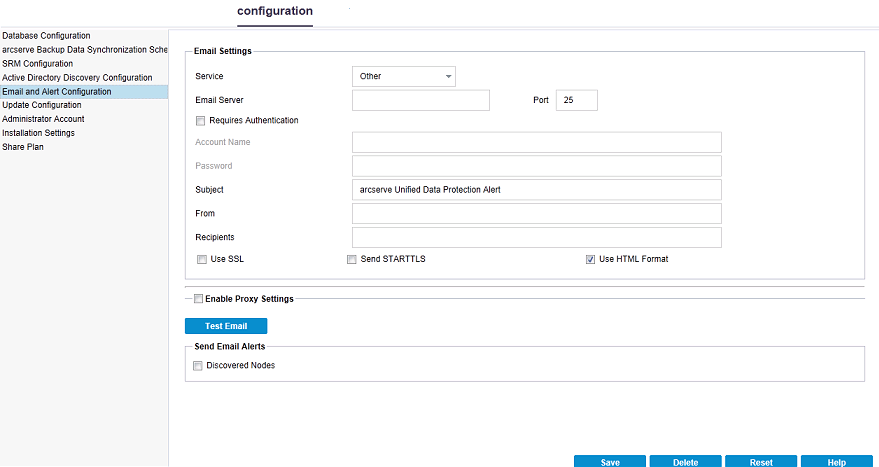

The Email and Alert Configuration page lets you provide email settings and email alerts configuration.

Note: As a prerequisite, install Adobe Flash Player ActiveX (version 10.0 or higher) and Microsoft .NET Framework (version 2.0 or higher) for the Report Chart export feature on the server to export images in a report successfully.

Follow these steps:

1. From the Console, click the configuration tab.
2. From the left pane, click Email and Alert Configuration.
3. Enter details to set default settings.



Service

Select email services from the available options.

Email Server

Specify the host name of the SMTP server that you can use to send email alerts.

Port

Specify the port number related to the Email server.

Requires Authentication

Select check box to enter credentials.

Use SSL/Send STARTTLS/Use HTML Format

Select the desired option to specify requirements.

Enable Proxy Settings

Select check box to enter Proxy Server and Authentication details.

Test Email

Click to verify the details that you enter in the Email Settings section.

Send Email Alerts

Select Discovered Nodes to configure Active Directory nodes that you can find using the Discover feature available for Nodes under the resources tab.
