Find Array and Data IP of the SVM Storage Array for the Arcserve UDP Console

This section describes how to find Array and Data IP when the NetApp Storage array is running in the cDOT(clustered) mode.

Note: Only applicable for the Cluster (SVM).

Folge diesen Schritten:

  1. Login to the NetApp system manager and connect to the cluster with valid credentials.

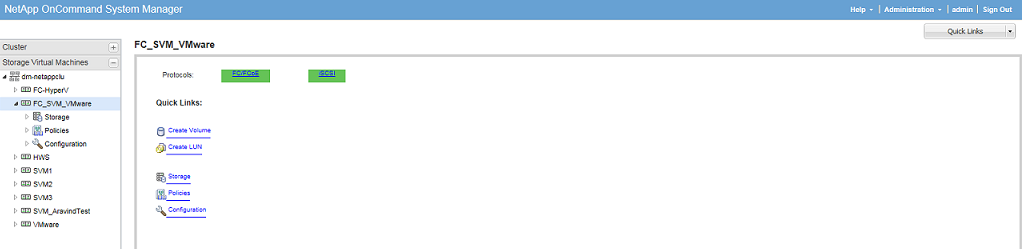

  2. Identify the SVM that you want to add to the Arcserve UDP console.

    Ermitteln der SVM, die Sie zur UDP-Konsole hinzufügen möchten

  3. Change the View to Cluster.

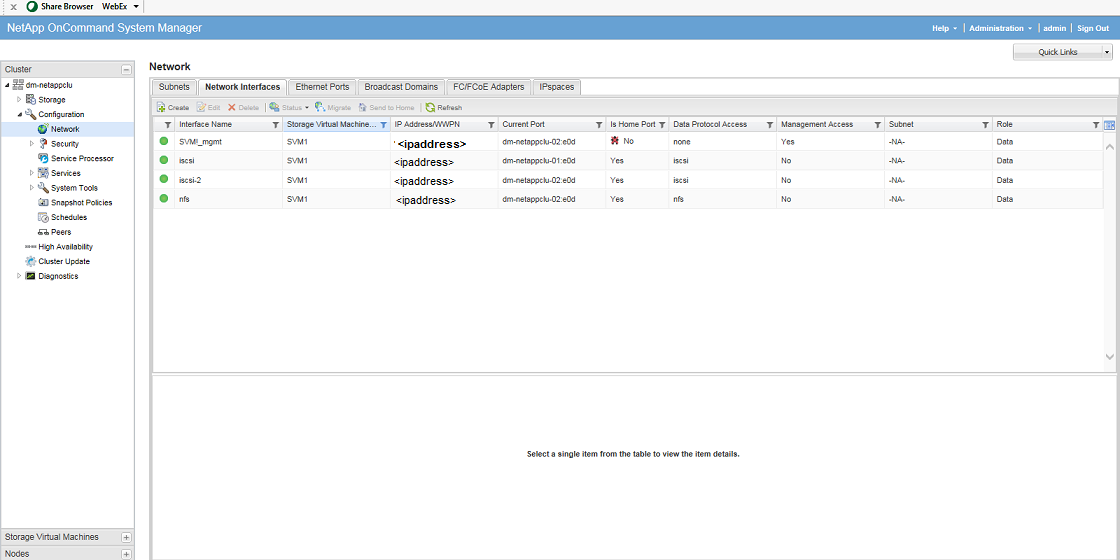

  4. From Cluster, Configuration, click Network, and then open Network Interfaces.

    Anzeigen von Netzwerkschnittstellen

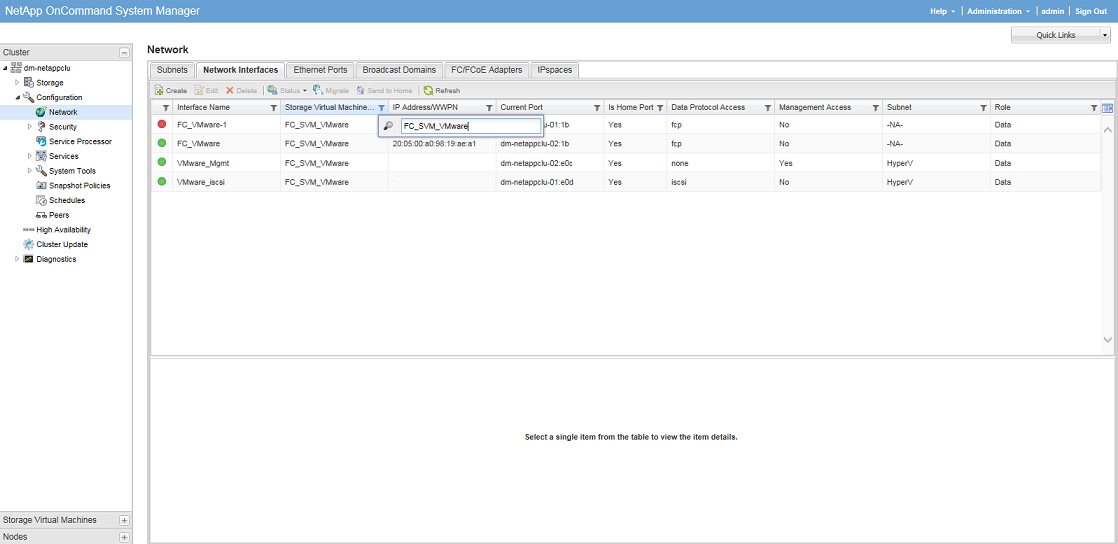

  5. Filter the storage virtual machine by the SVM that you have identified.

    Filtern der SVM anhand der identifizierten SVM

  6. Find out which interface has:

    Suchen von IP-Adressen

  7. Get the Management Access IP address and the Data protocol access IP address for the following, and provide them at Add Storage Array in the UDP Console:

    Note: The ESXi server must use the same Data protocol access IP address for read and write to the NetApp storage array for iSCSI or NFS.
